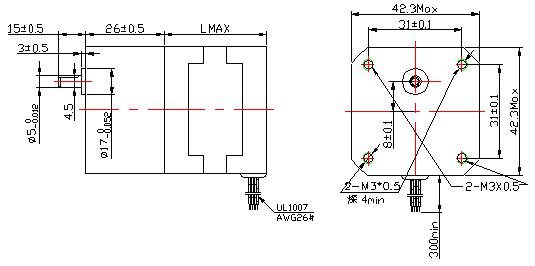

Model:42BYGH Gear Motor(17HS Gear Motor)
Step Accuracy………………………±5%
Temperature Rise……………………80°C Max
Ambient Temperature Range…………-20°C~+50°C
Insulation Resistance……………100MΩMin.500VC DC
Dielectric Strength……………500V AC 1 minute
Details
Electrical Specifications：
|
|
|
Model
|
Step
angel
（ °）
|
Motor Length
L(mm)
|
Rate Voltage
(V)
|
Rate Current
(A)
|
Phase Resistance
(Ω)
|
Phase Inductance
(mH)
|
Holding
Torque
(N.m)
|
Lead Wire
(No.)
|
Rotor Inertia
(g.C㎡)
|
Detent Torque
(g.㎝)
|
Motor Weight
(㎏)
|
| 17HS3404-27AG30 |
1.8
|
34
|
12
|
0.4
|
30
|
37
|
0.26
|
4
|
34
|
200
|
0.25
|
| 17HS0412-07AG30 |
1.8
|
40
|
3.6
|
1.2
|
3
|
3.2
|
0.26
|
4
|
54
|
220
|
0.3
|
| 17HS4604-AG30 |
1.8
|
48
|
12
|
0.4
|
30
|
50
|
0.45
|
6
|
68
|
280
|
0.4
|
|
